Install Instructions for 10-1015

Print

Before You Start

  • Please read the entire product guide before proceeding

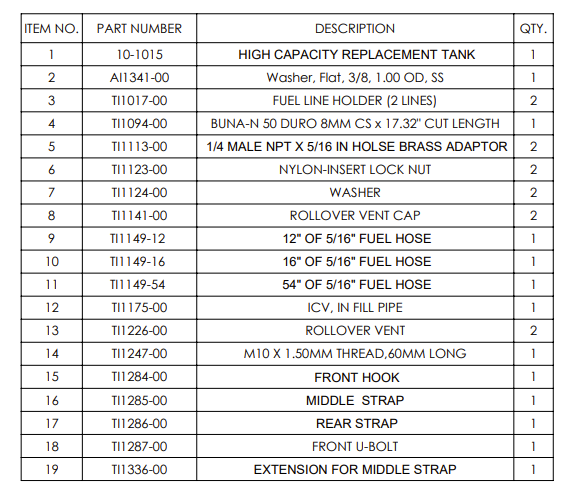

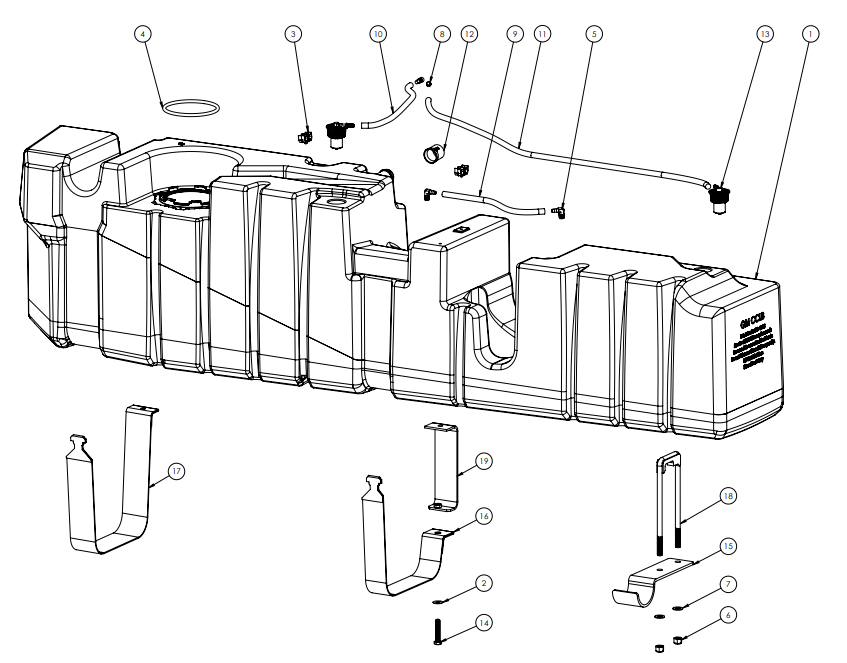

  • Ensure all parts are present.
  • If you are missing any parts, please call or text us at (909)-675-1313
  • Do not work on your vehicle while the underbody components are hot.
  • Make sure the vehicle is in park or the parking brake is set if you plan on working on the ground. If working on a lift, make sure the vehicle is lifted safely and securely.


Disconnect and isolate both of the negative battery cables.
Before installing S&B Tank, conduct pressure test to ensure o'ring is properly seated.
Auxiliary Fuel Tanks will void the Lifetime Warranty.
DIESEL FUEL ONLY.

Important Note: This tank does not currently fit vehicles with a 2 piece driveline. A revised tank is being developed that will fit both 1 and 2 piece drivelines and will be available by the end of April.

Required Tools

Flathead Screwdriver, 5/16" Nut Driver or 5/16" socket

Mallet/Hammer

15mm Socket

19mm Socket

17mm Socket

Ratchet

12" Driver Extension

STEP 1

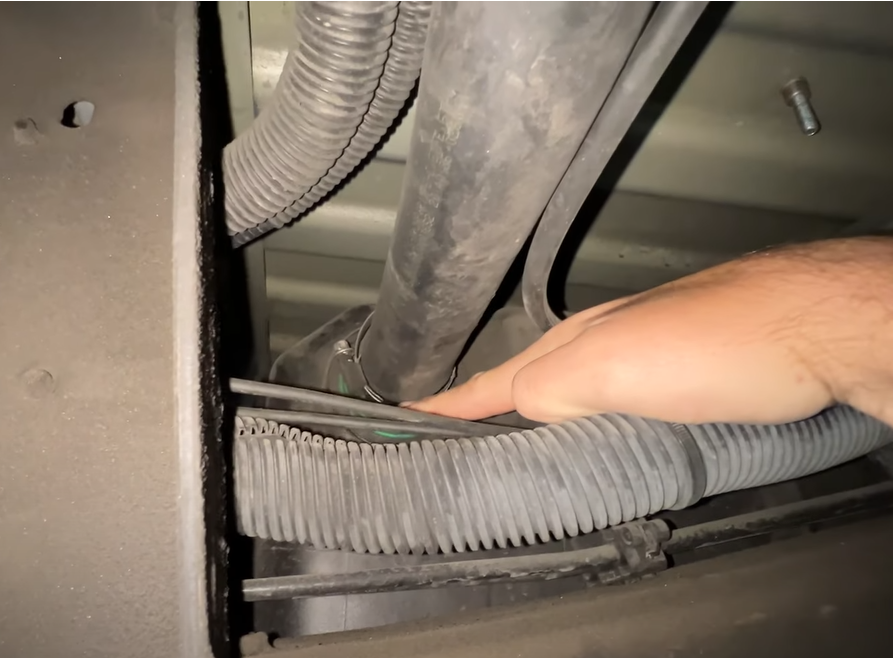

Loosen the hose clamp and remove the filler hose.


STEP 2

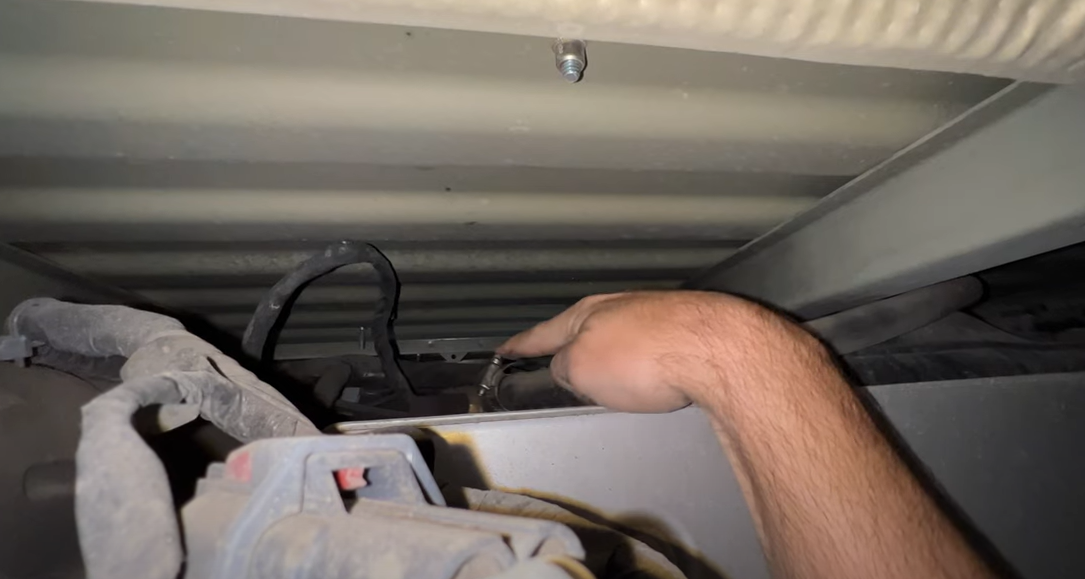

Remove the hose clamp and hose from the main vent line attached to the fuel sending unit. You can reach over the driveline to access this.


STEP 3

Support the bottom of the tank with a floor jack or transmission jack.


STEP 4

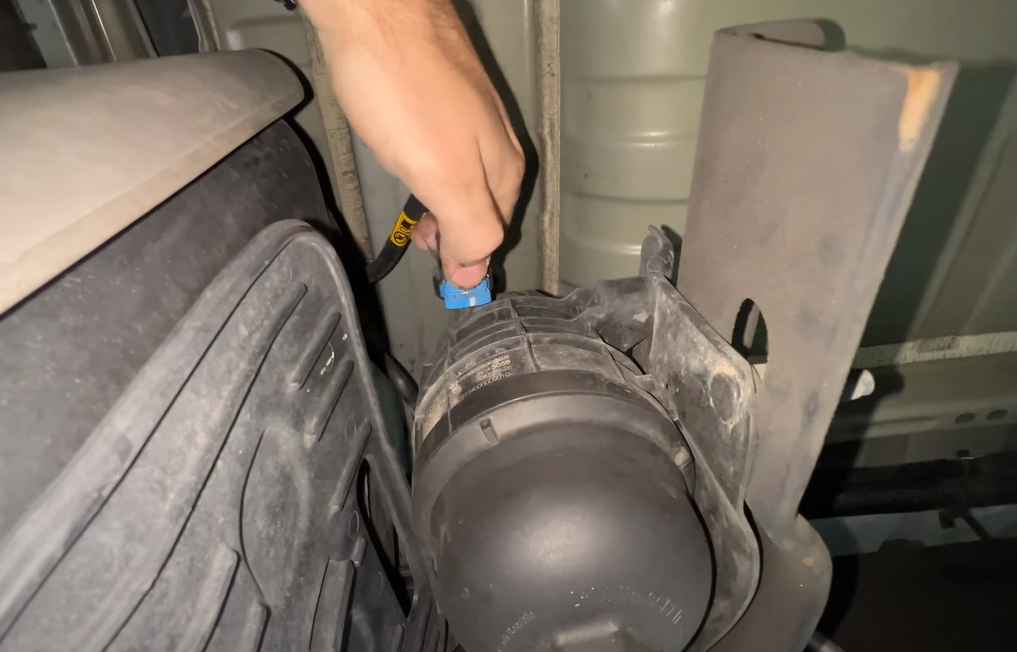

Disconnect the blue and white fuel connectors. Please see our install video if you need help with removing these.

 https://www.youtube.com/watch?v=vdO4PNBpR0k&t=569s

STEP 5

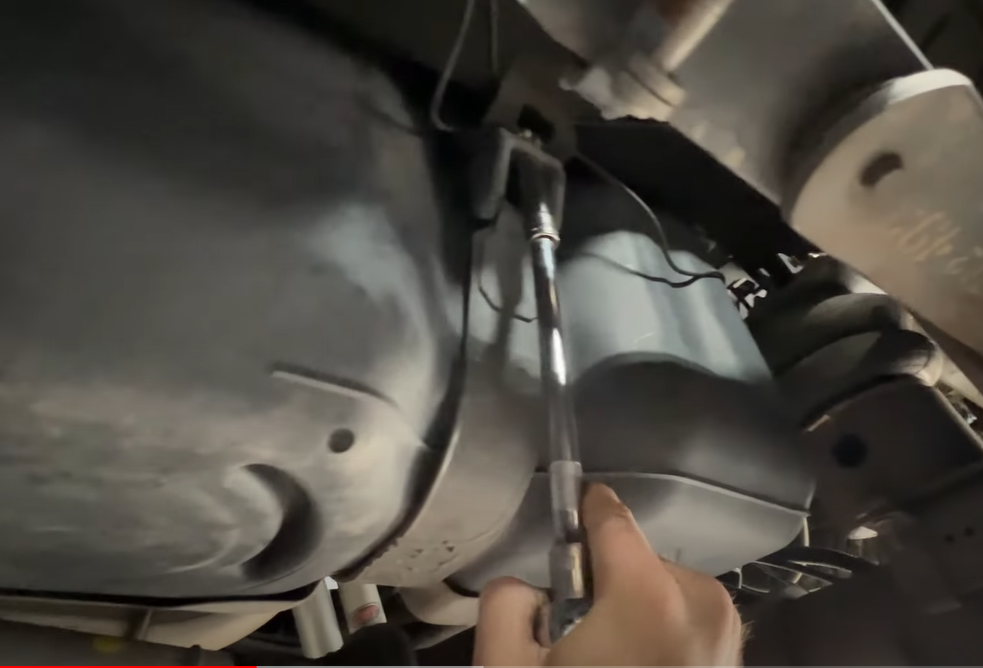

Remove both fuel tank straps with a 15mm socket.


STEP 6

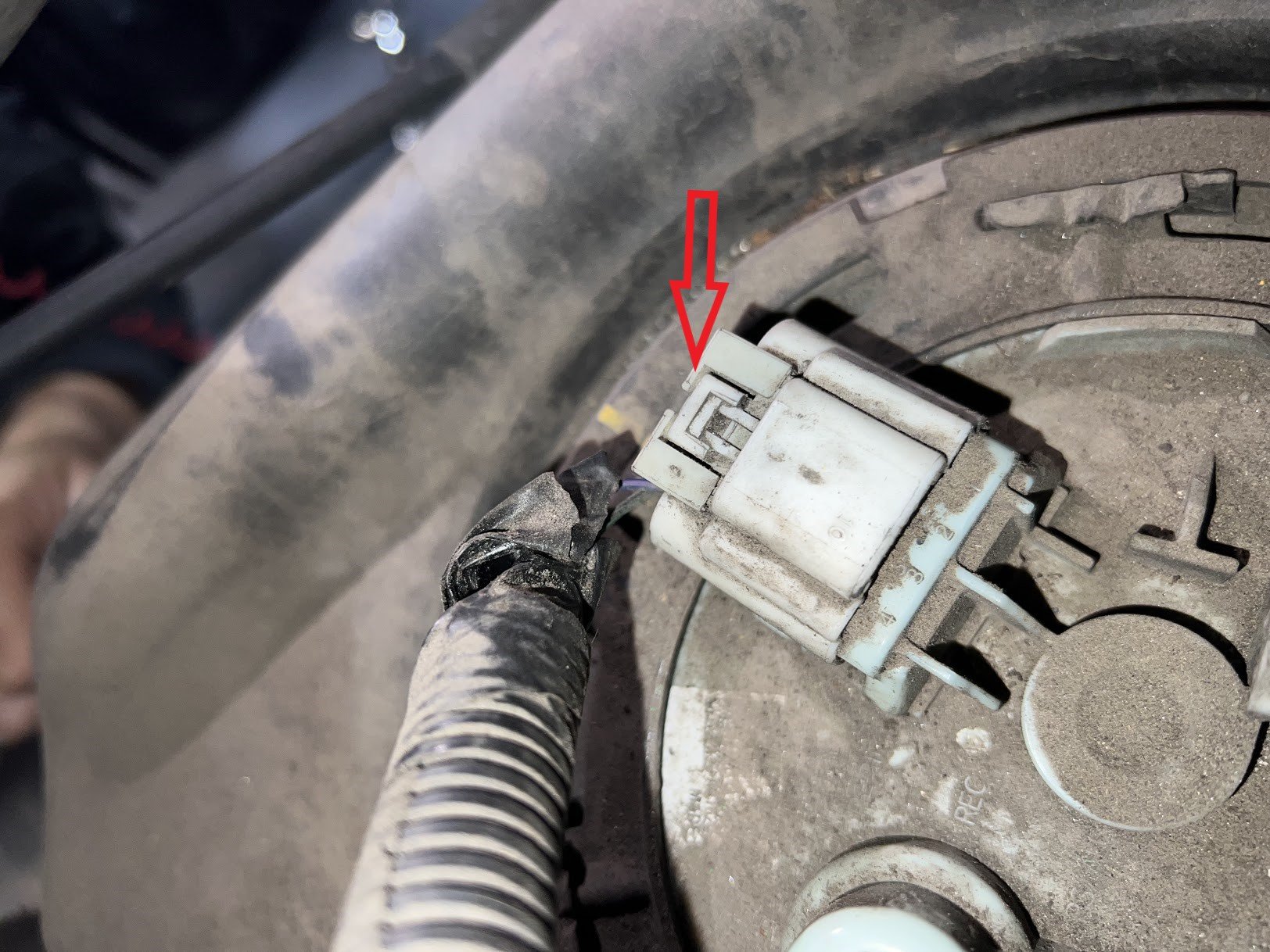

If you can reach the fuel sending unit electrical connector, you can disconnect it before dropping the tank. If you need more room to disconnect the connector, lower the tank 6" and disconnect. Slide the red lock out and depress the tab in the middle then slide the connector off.


STEP 7

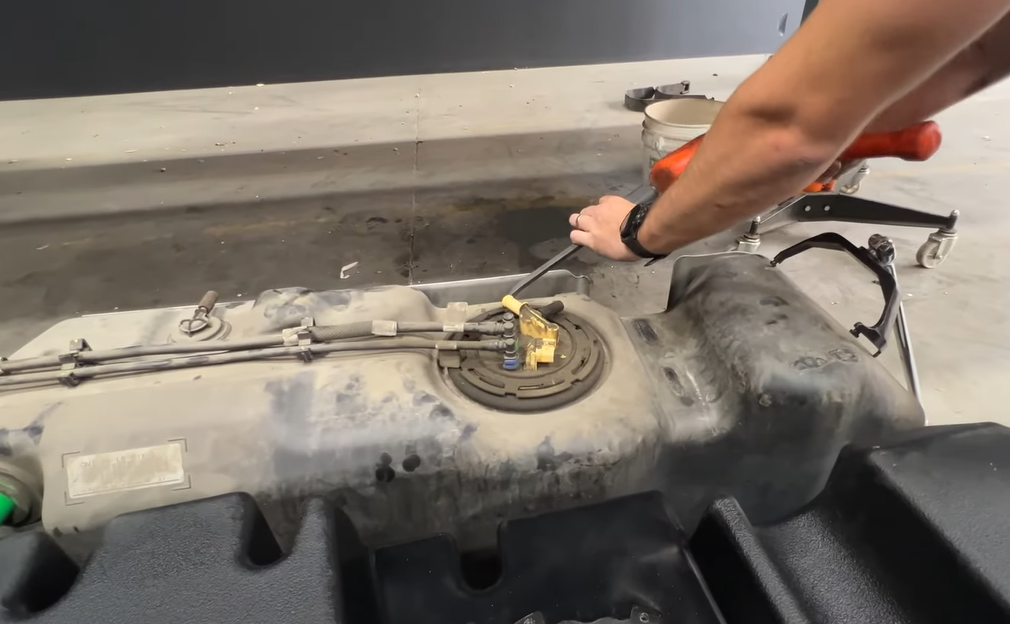

Hit the locking ring counter clockwise to release the OEM sending unit.


STEP 8

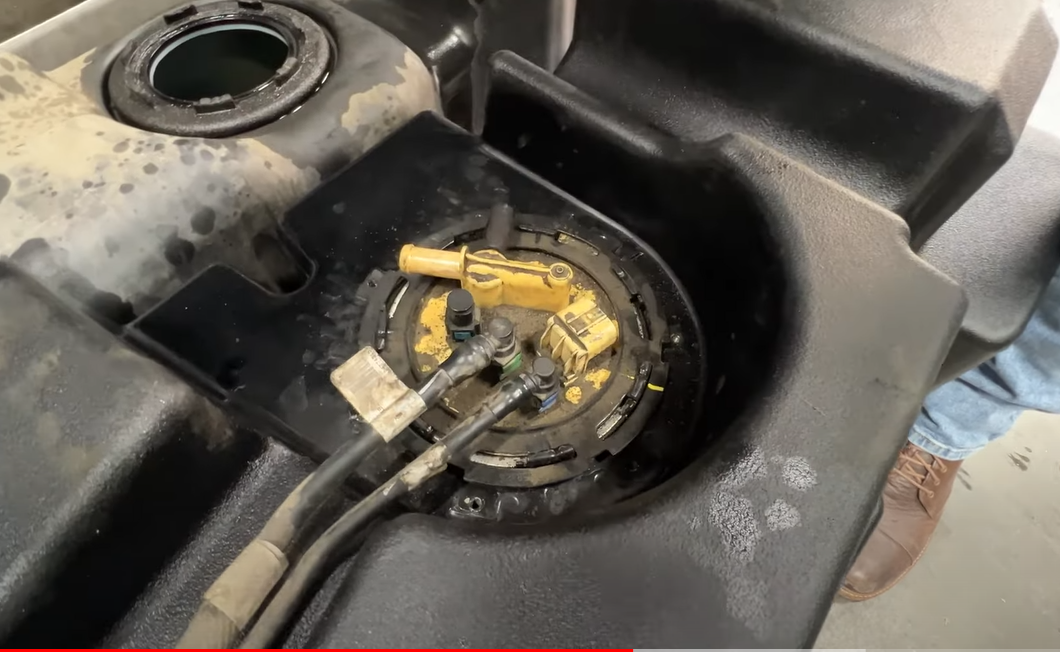

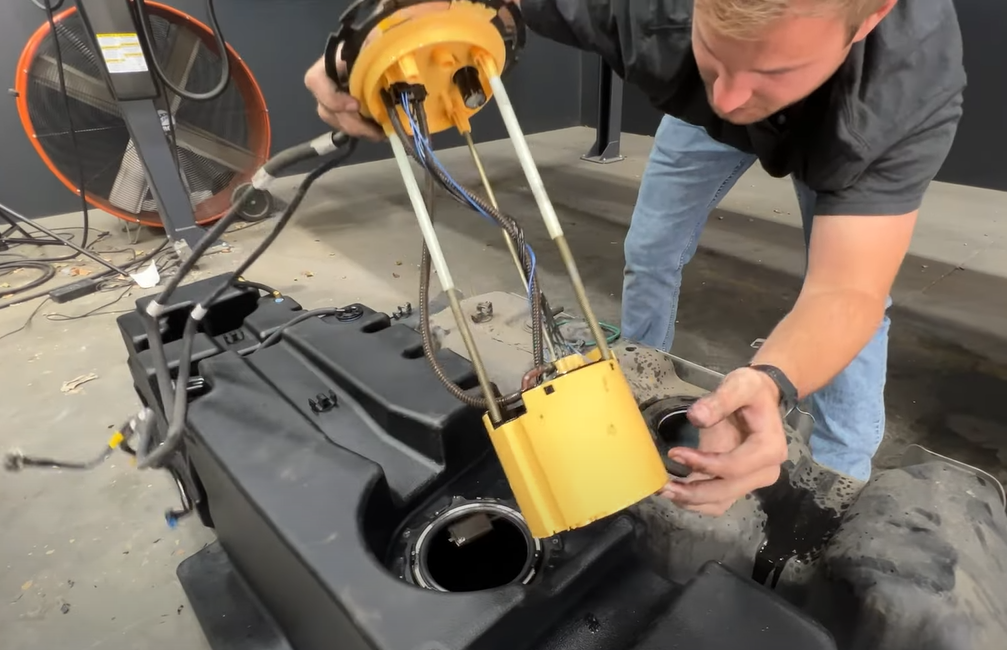

Place the included S&B oring in the oring groove on the S&B Tank. Install the sending unit and make sure to not damage the fuel float.


STEP 8A

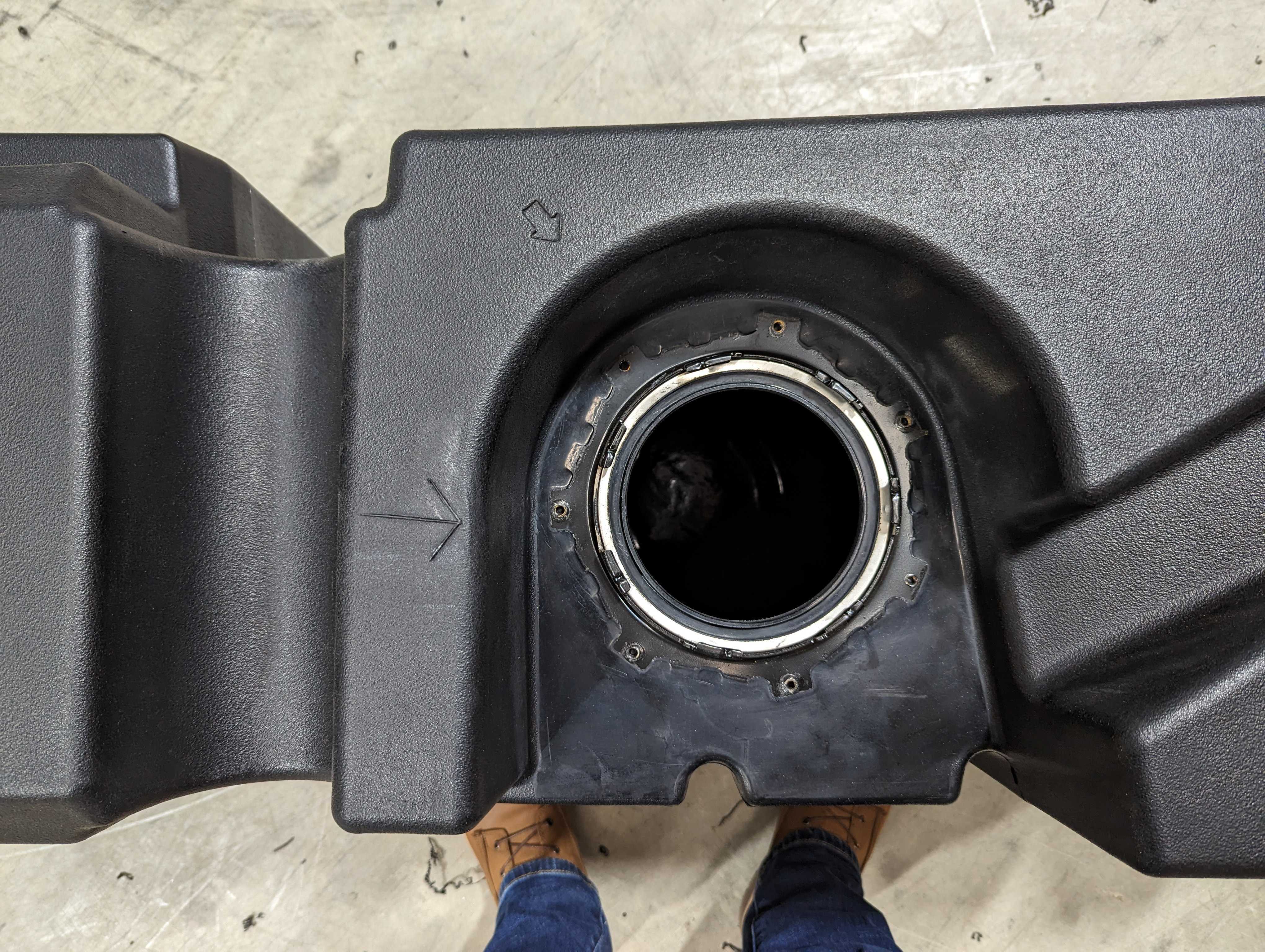

The tab on the sending unit should face the skinny arrow on 2017-19 trucks and the block arrow on 2011-16 trucks


STEP 9

Press down of the locking ring to get the ring started and then hit the ring close wise until the locking ring goes under the indention in the ring and is locked into place.


STEP 10

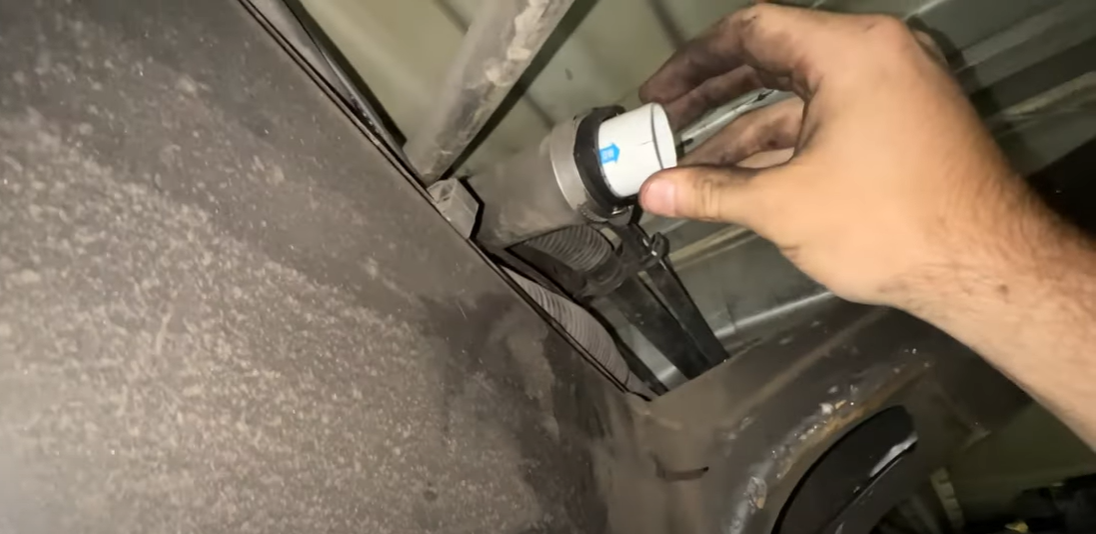

Place the included check valve into the filler hose. The arrow on the valve should be facing into the tank.


STEP 11

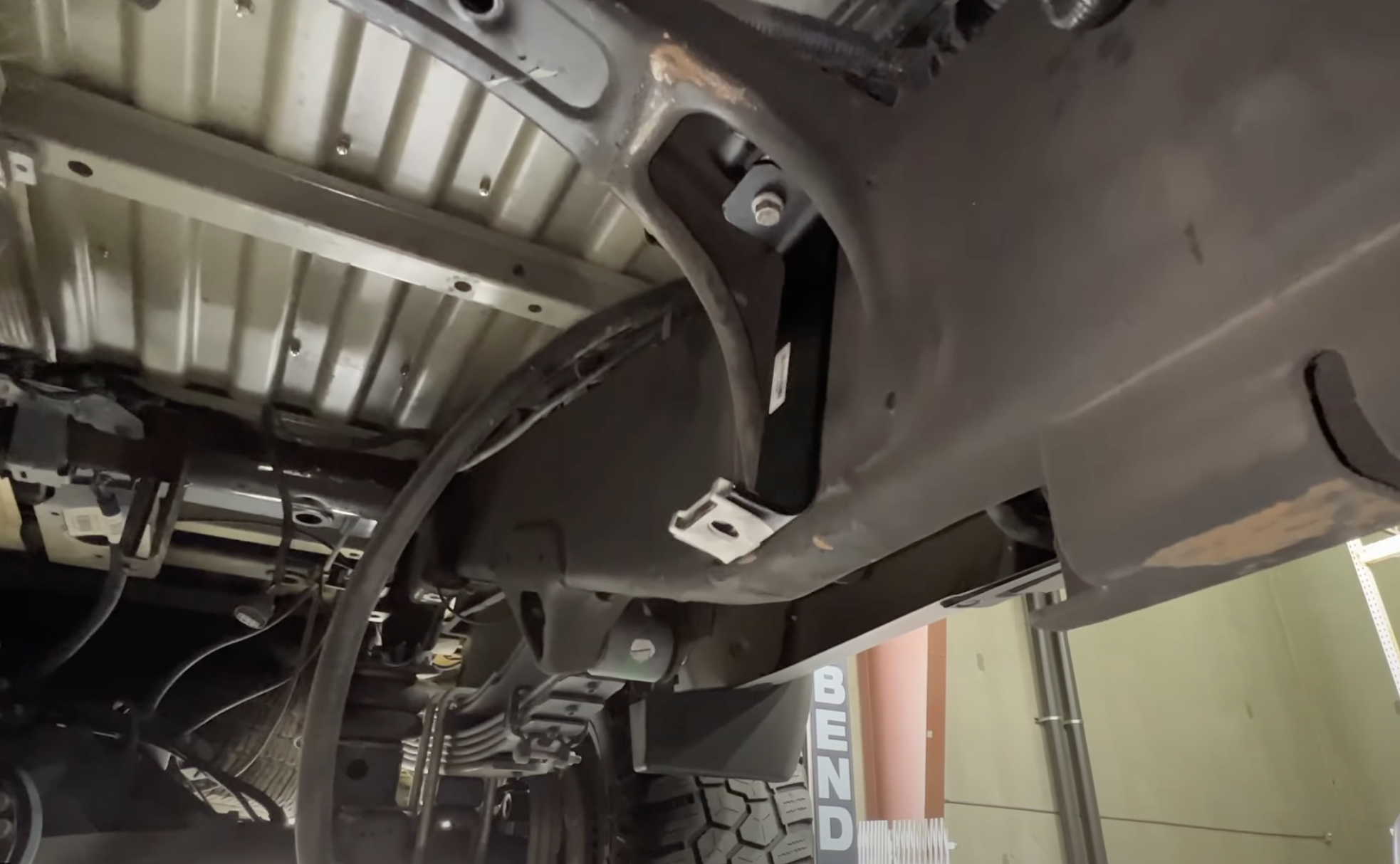

Take the half strap and attach it to the frame using the oem bolt. The longer and more squared off side will be the side that attaches to the frame. This strap was updated to have a welded on nut instead of the slip nut


STEP 12

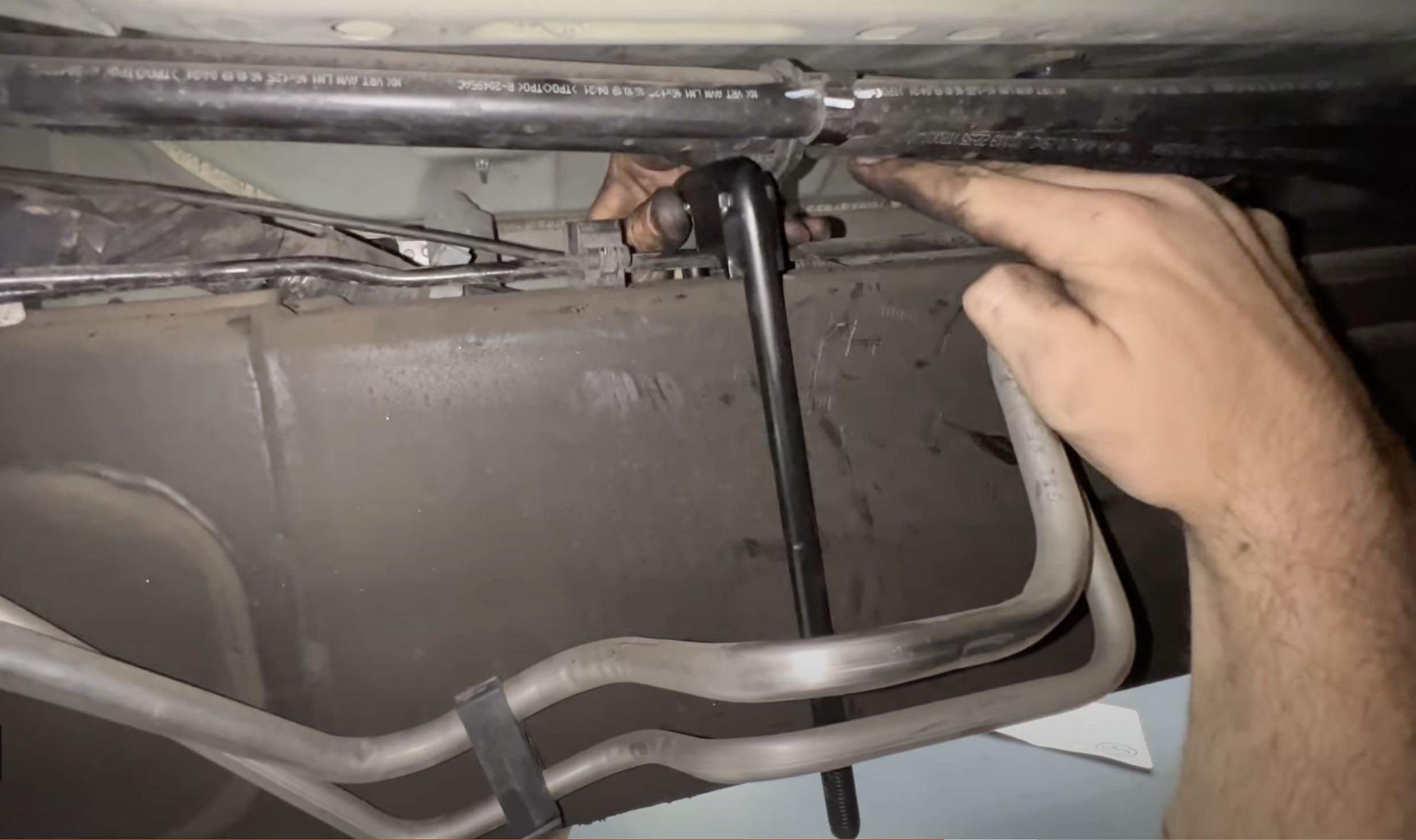

Install the included U-Bolt over the frame. Once installed, make sure there is space between the brake lines and U-Bolt. If the brake lines are touching the U-Bolt, call us and don't install the tank.


STEP 12B

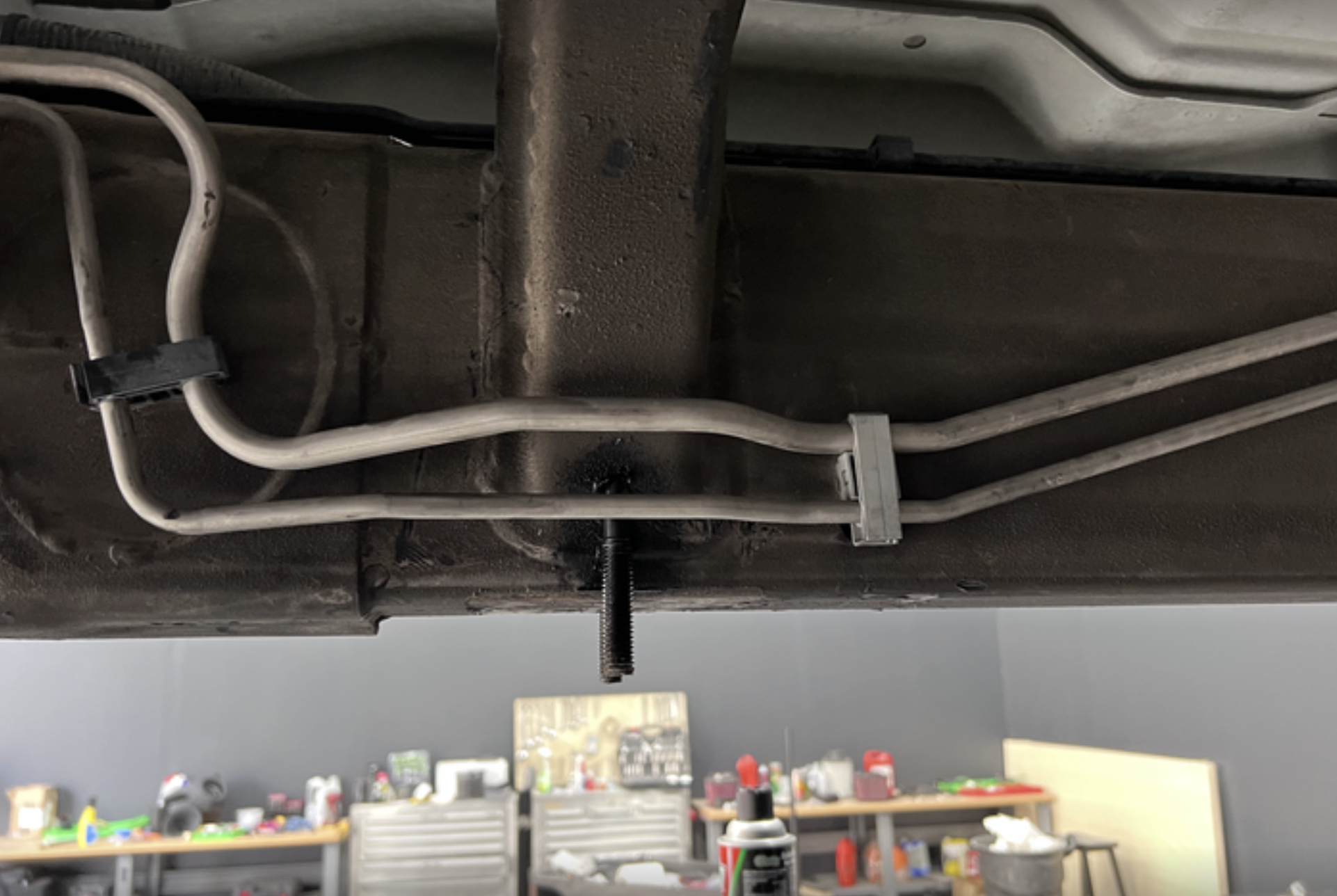

If you have a truck with a 2 piece driveline. The u-bolt will go through the drain hole in the crossmember. Remove the fuel lines from the clips to give room for opening up the hole.

STEP 12C

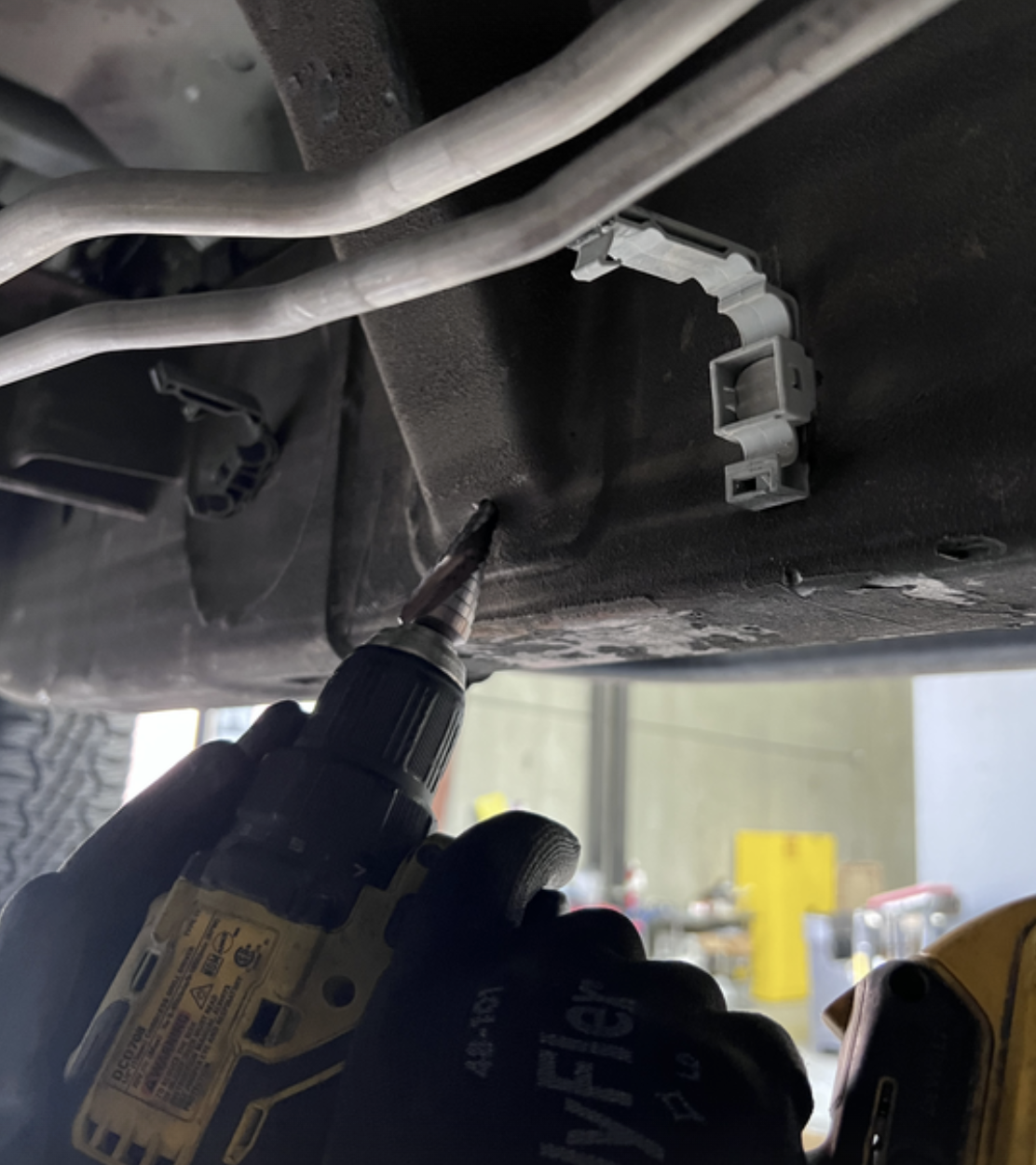

Using a step drill bit, open up the hole until their is enough room for the u-bolt to fit through.. Touchup the metal with paint to prevent rust.

STEP 13

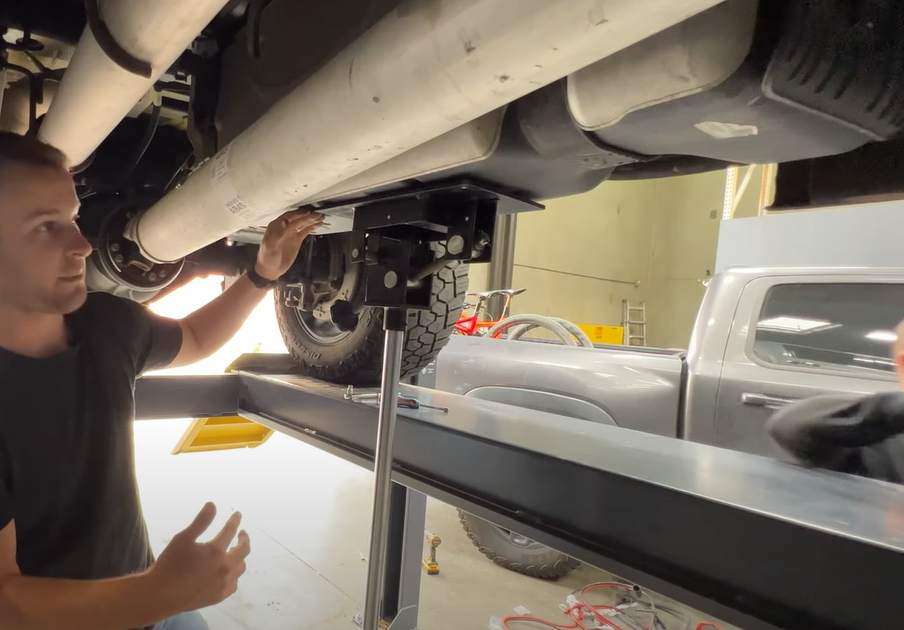

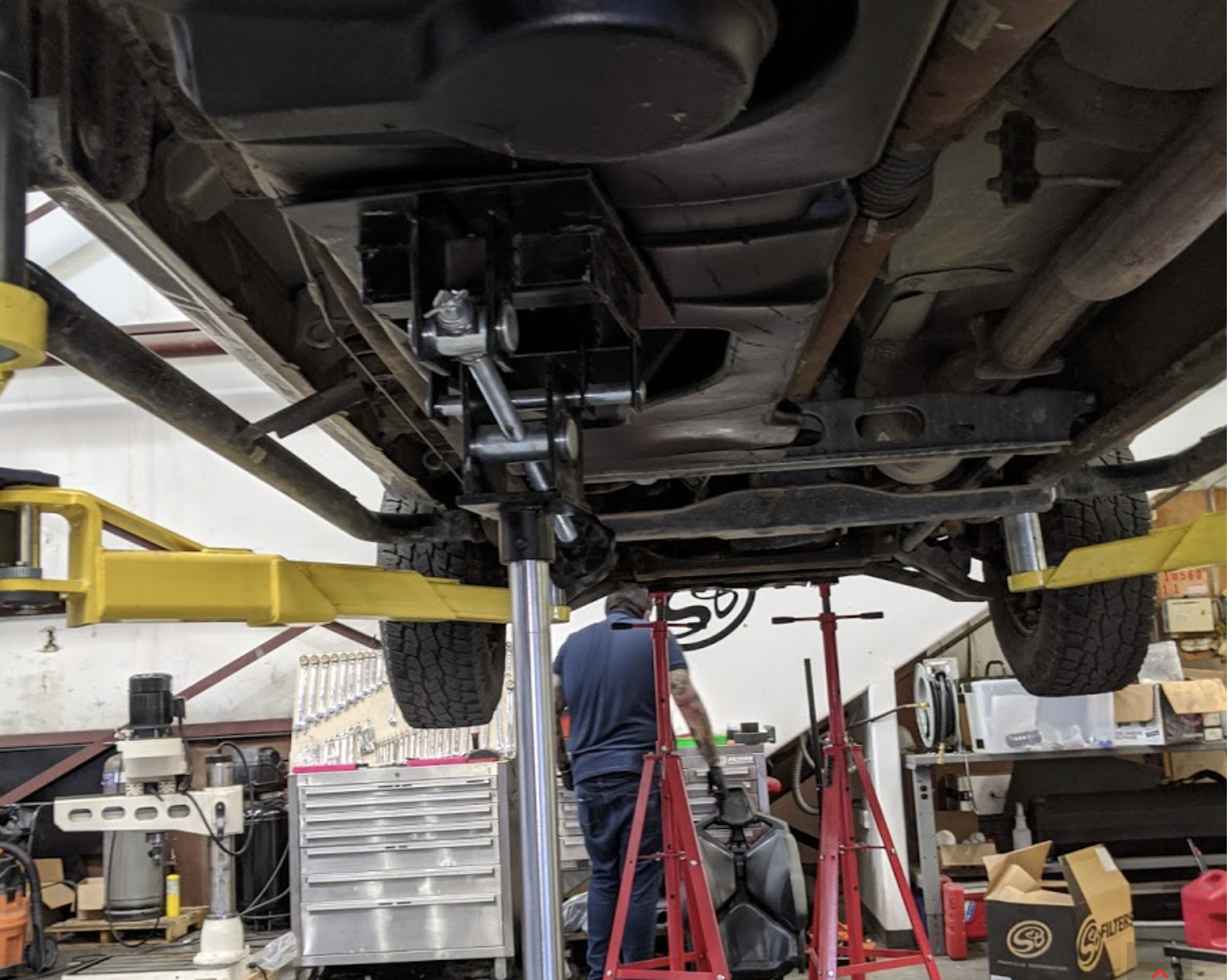

Center the hydraulic jack underneath the fuel tank and raise it into position. Lift Install: Hydraulic Jack Floor Install: Floor jack with added support to properly hold tank


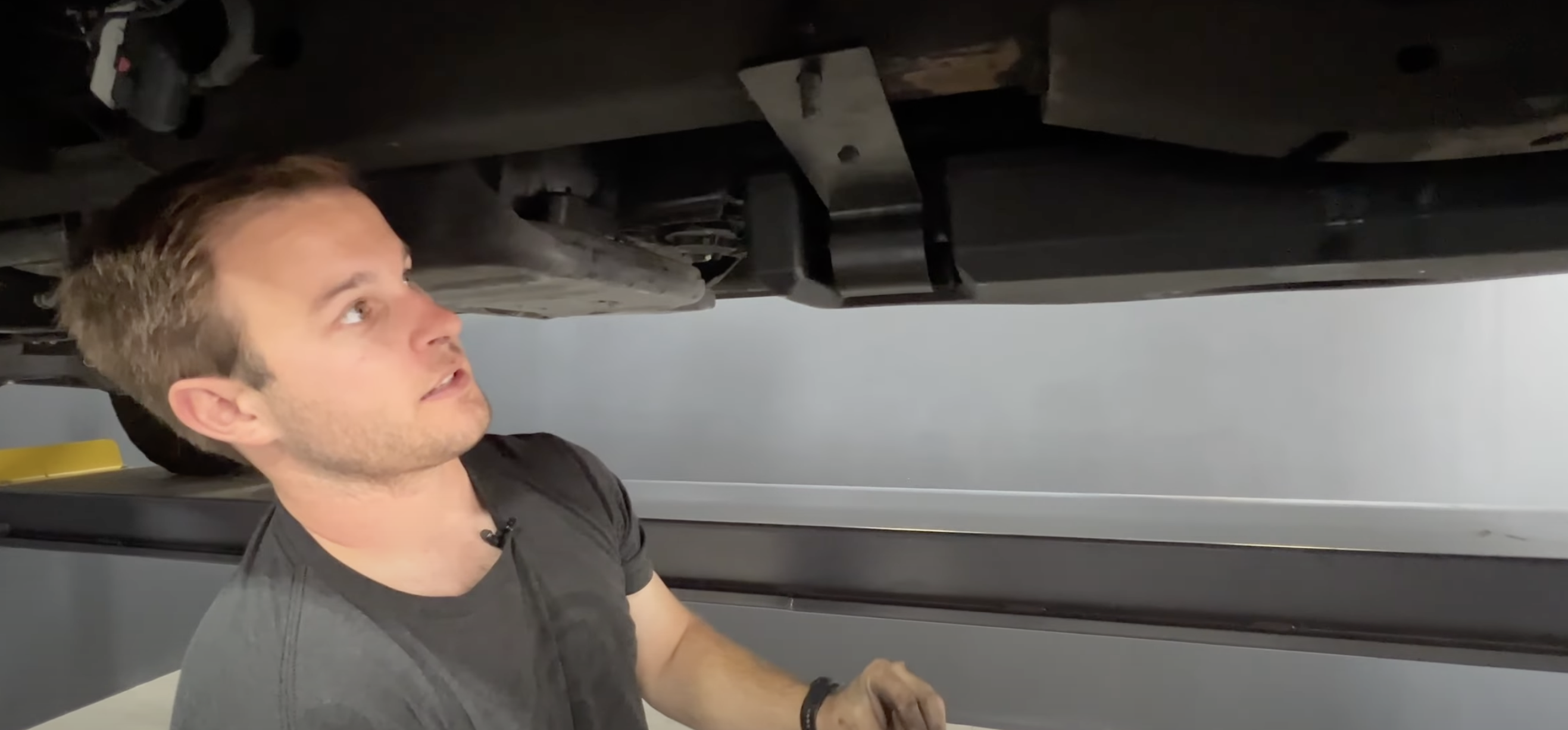

STEP 14

Attach the front support strap to the U-Bolt. Then tighten the washers and lock nuts onto the u-bolt.


STEP 15

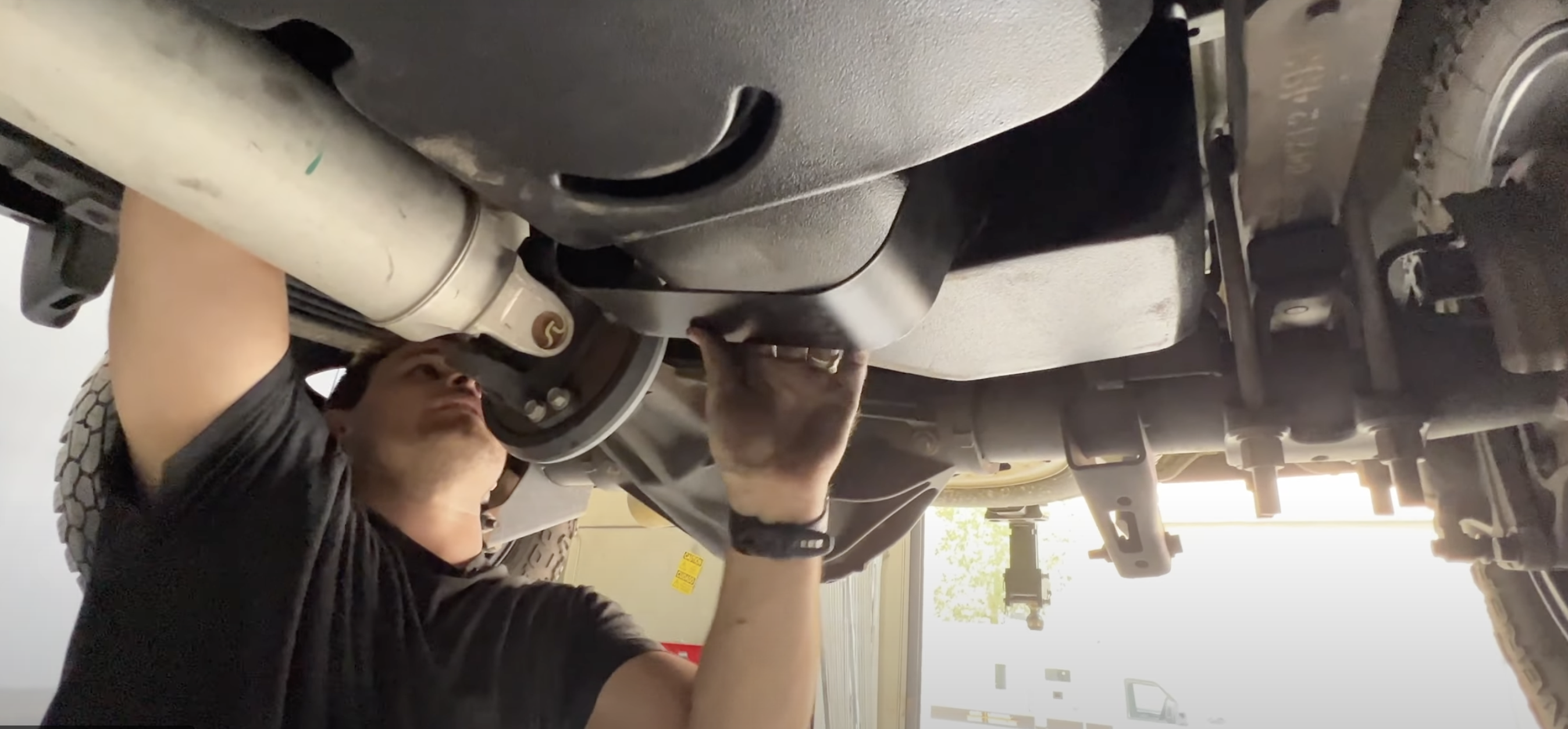

Install the middle and rear S&B fuel tank straps. Make sure you take the supplied S&B bolt and apply blue lock-tight to the body of the bolt. - 15mm socket and extension


STEP 16

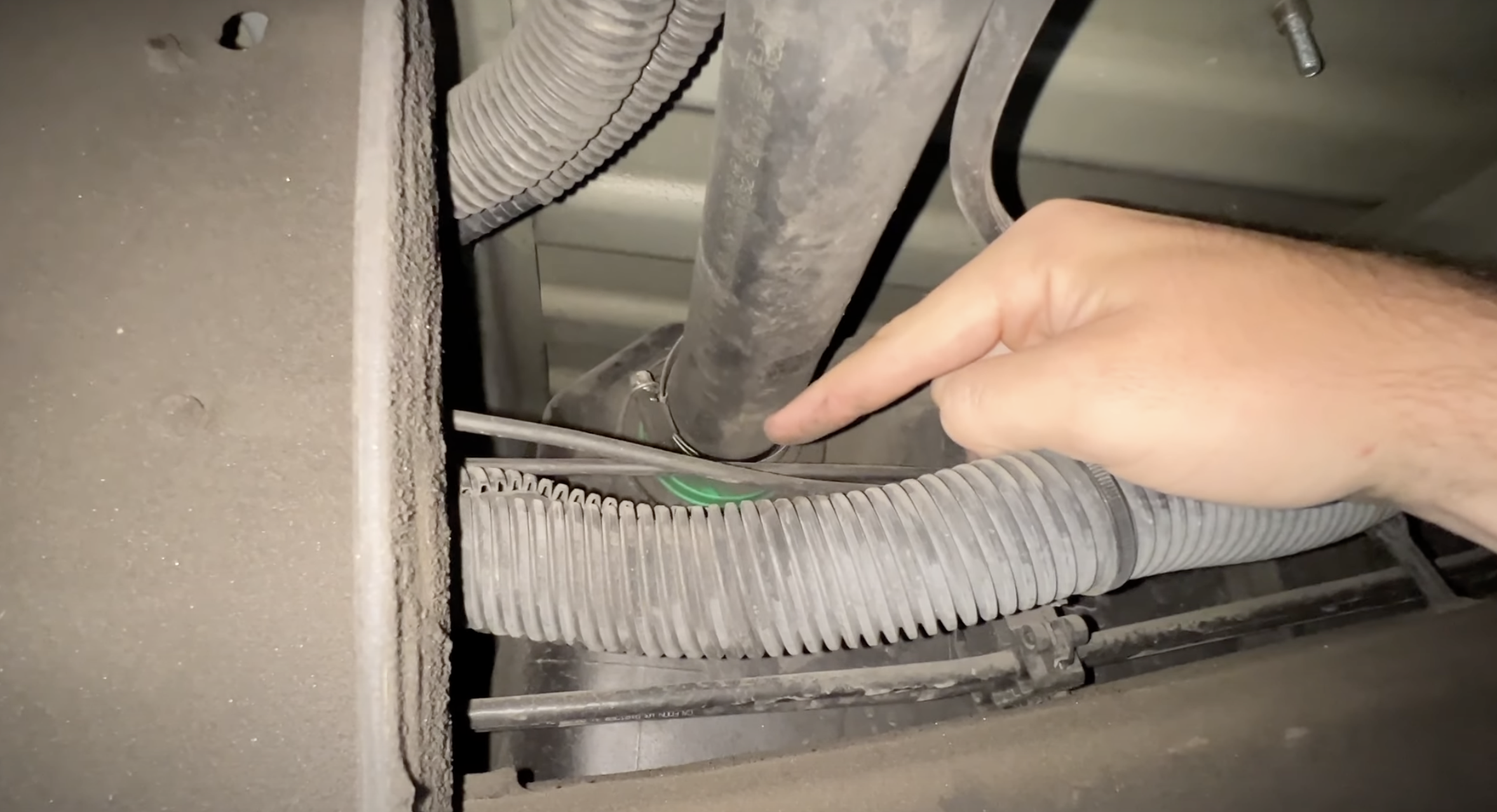

Reinstall fuel filler hose to filler on vehicle side and tighten clamp


STEP 17

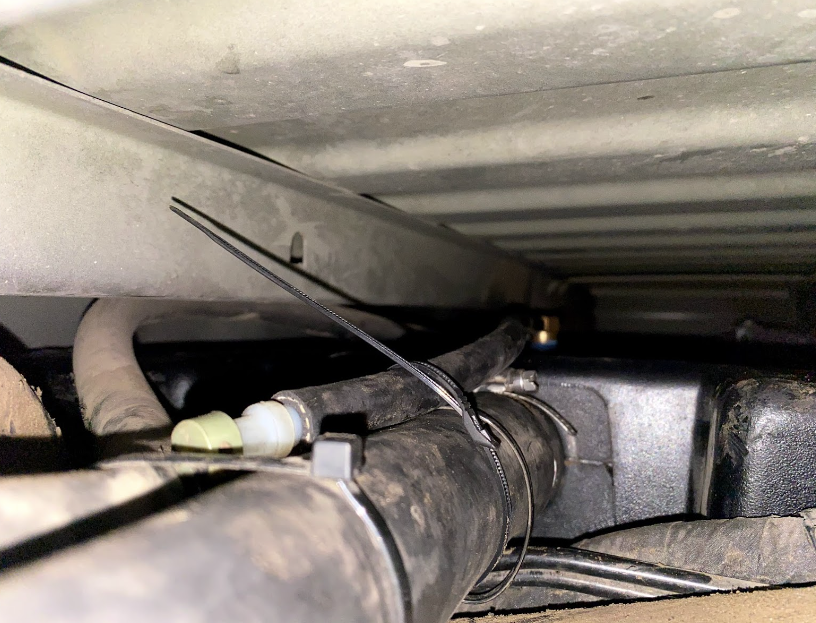

Route the 2 5/16" rollover valve hoses and zip tie them up to the filler.

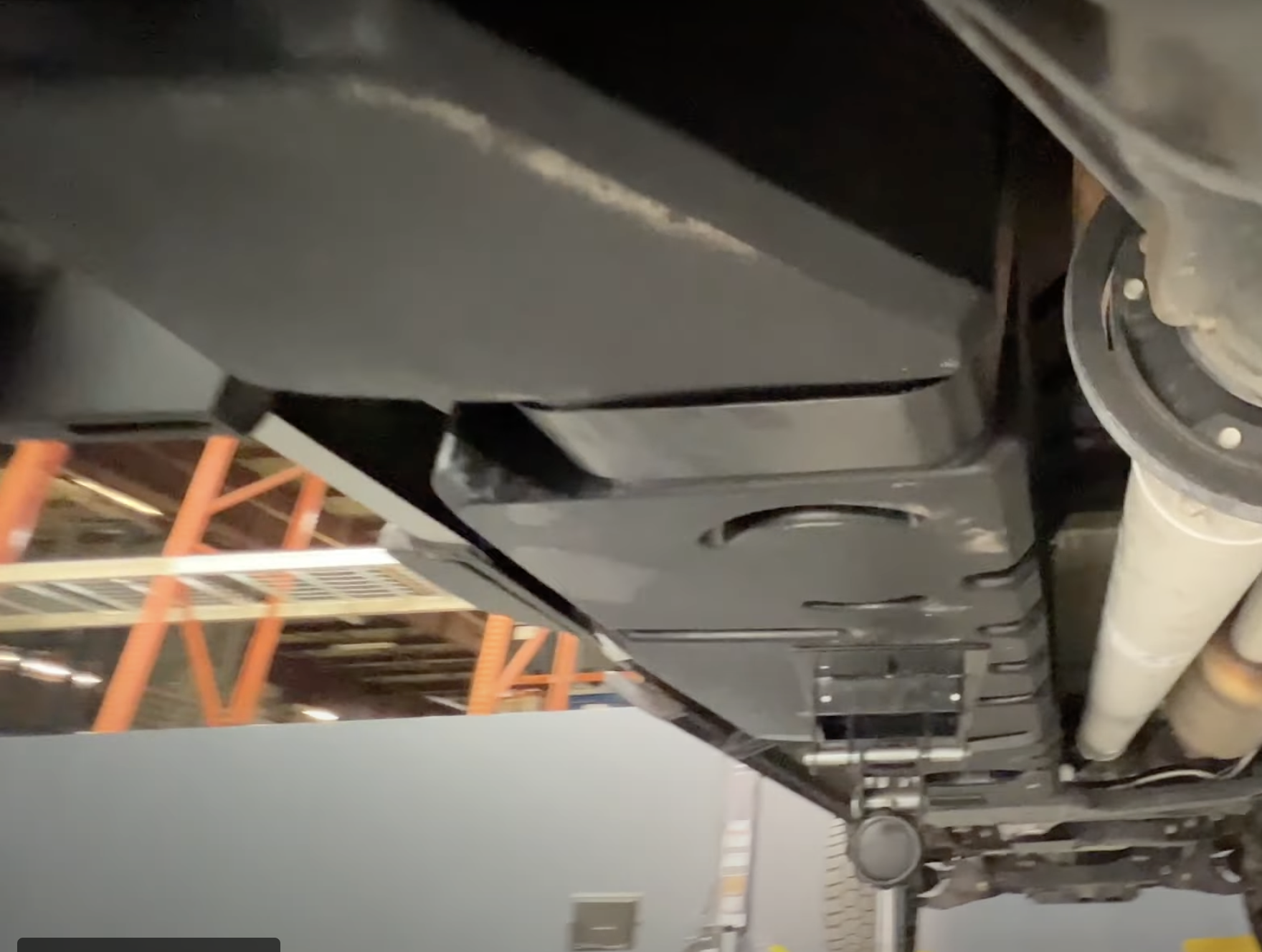

Step 18 CHECKLIST

This final checklist is very important.

#1 Make sure all nuts are safely fastened and torqued.

#2 Ensure there is proper driveshaft clearance and the straps are tight

#3 Double check fuel line connections, the electrical connection as well as the vent and fill lines.

#4 Lastly, fill the tank full and check for any leaks. If you have any questions, call or text us at 909.675.1313
